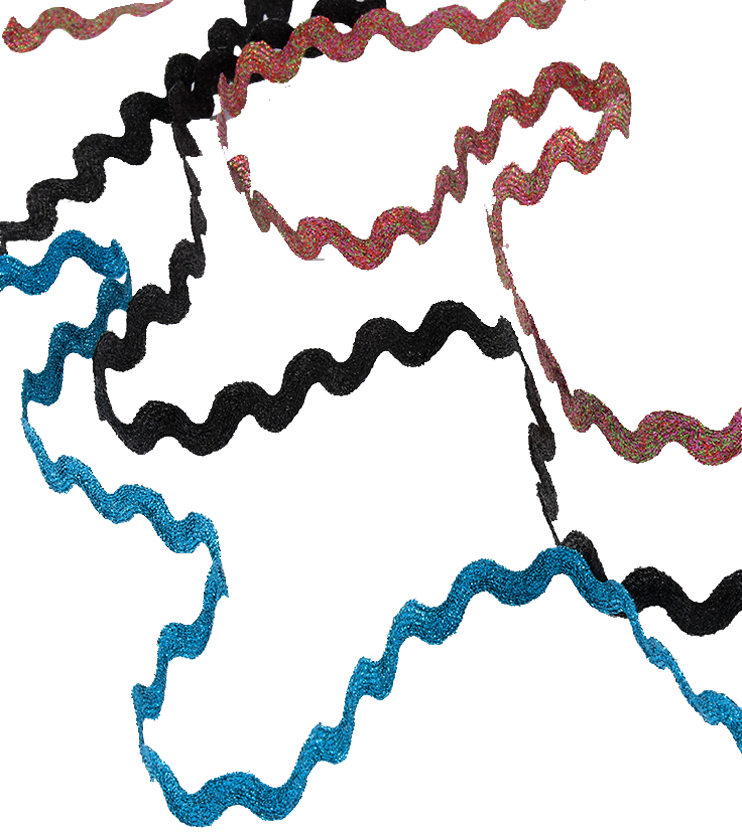

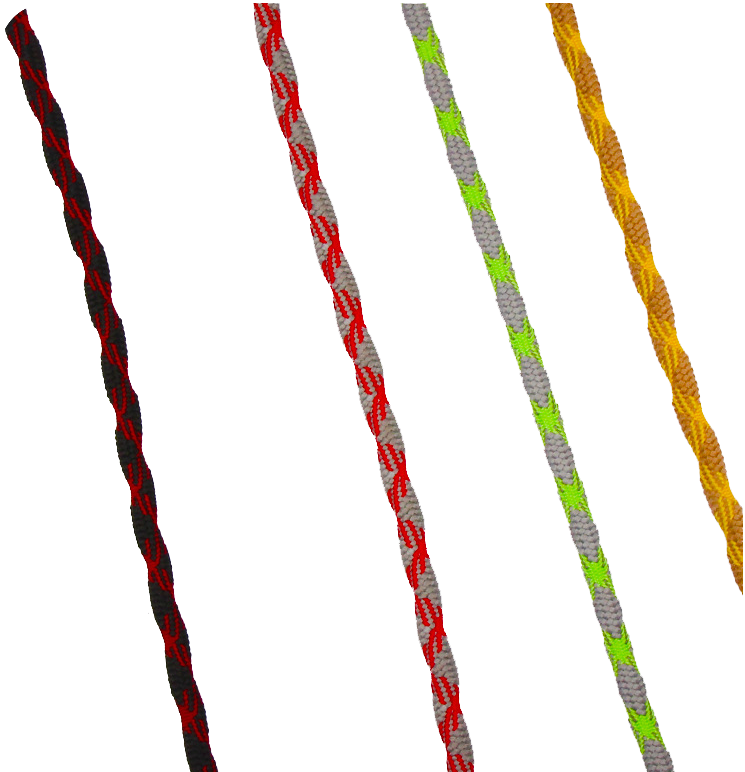

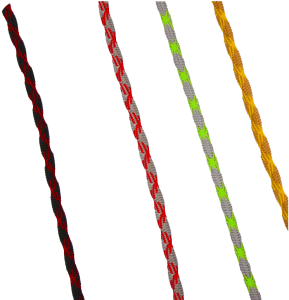

Flat belt is a new type of flat belt products formed by a group or more groups of yarns, the circulation of warp yarns and intersecting, different from shuttleless machine flat belt products (vertical intersection of warp and weft yarns), generally for single ingot machine production, specifications can be customized from 1mm to 30mm,.
Materials can be used: Cotton yarn, polypropylene yarn, polyester yarn, mercerized cotton, nylon, rayon, etc., or a cross combination of several materials, while according to the size of the production model, raw materials, color, space and other changes, can greatly improve the creative space of products, develop a variety of colors, styles, or matching effect of flat ribbon products.
| MODEL | HEADS | SPINDLES | MEASUREMENT (MM) | POWER (KW) |
HORNGEAR SIZE (MM) | MAX RPM (RPM/MIN.) | BOBBIN SIZE (MM) | GROSS WEIGHT(KG) | ROPE DIA.(MM ) |
| YTS 8/3 | 8 | 3 | 1100*700*1700 | 0.75 | 90 | 320 | 48*140 | 350 | 0.1-3 |
| YTS 8/9 | 8 | 9 | 1780*750*1650 | 0.75 | 90 | 320 | 48*140 | 600 | 1-8 |
| YTS 4/11 | 4 | 11 | 1150*450*1650 | 0.75 | 90 | 320 | 48*140 | 450 | 1-8 |
| YTS 4/17 | 4 | 17 | 1780*450*1700 | 1.1 | 90 | 320 | 48*140 | 500 | 2-12 |
| YTS 4/21 | 4 | 21 | 1980*650*1700 | 1.5 | 90 | 320 | 48*140 | 500 | 2-12 |
| YTS 2/25 | 2 | 25 | 1200*750*1700 | 0.75 | 90 | 320 | 48*140 | 600 | 2-12 |
| YTS 4/25 | 4 | 25 | 2180*900*1650 | 1.1 | 90 | 320 | 48*140 | 650 | 2-12 |
| YTS 2/29 | 2 | 29 | 1300*850*1700 | 0.75 | 90 | 320 | 48*140 | 450 | 3-15 |
| YTS 1/39 | 1 | 39 | 950*850*1700 | 0.75 | 90 | 320 | 48*140 | 450 | 4-18 |
| YTS 1/45 | 1 | 45 | 1050*950*1700 | 0.75 | 90 | 320 | 48*140 | 450 | 5-20 |
| YTS 1/49 | 1 | 49 | 1250*1050*1700 | 0.75 | 90 | 320 | 48*140 | 450 | 5-21 |
Post time: Nov-16-2022
