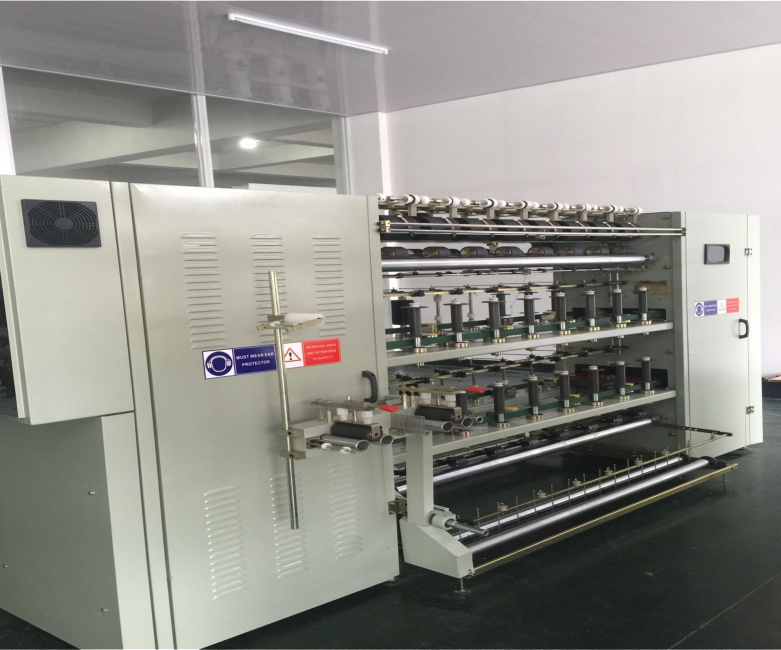

Double Covering Machine

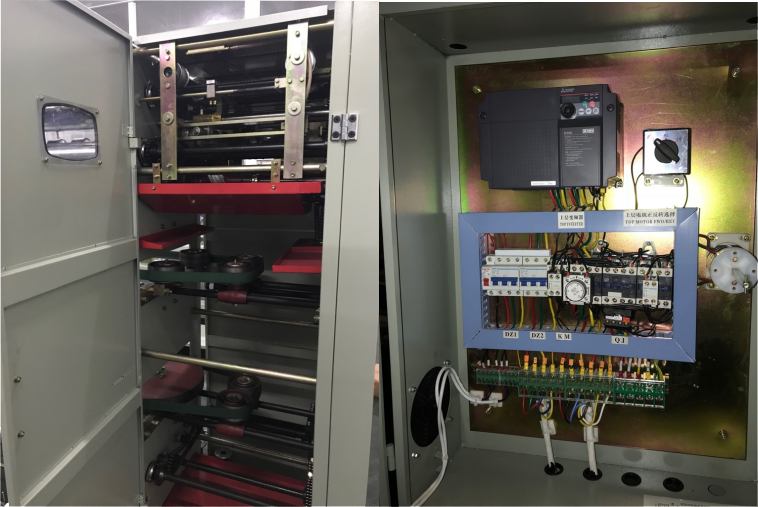

Motor and drives frames

N.2 motors,top motor 7.5kw,bottom motor 11kw,380V,50HZ,3PH
N.1 Mitsubishi inverter for 7.5kw
N. 6 motor pulleys
N. 41 change gears for input,draft,take-up

Central sections

N. 8 machine sections,one section have 16 pcs production heads, total 128 take up positions.
N. 7 central frames.
N.16 pcs chromeplate rollers for spandex/rubber draft, with 128 pcs smaller counterweight.
N. 256 pcs complete spindles with fix ceramic inlet special.
N. 512 pcs Diam.84mm aluminum bobbins.
N.32 pcs chromeplate rollers for covered yarn draft, with 128 pcs bigger counterweight.
N.128 draft positions on complete roller.
N.2 tangential spindles belt Made in Swiss.
N.128 elastic pulleys, 64 left and 64 right.
N.1 complete spandex/rubber feeding system.

Belt stretcher headstock

N.2 (lower and upper ) belt stretcher devices complete with guide pulleys
N.1 mechanical reducer with pulley for input/draft/take-up

Extra spare parts (Free)

N.5 spindles complete with fix ceramic inlet.N.4 spindle hand pliers
N.4 breaking shoes for hand plier
N1. sets of Cleaner and oil pump
All kinds of ceramic,each 12(such as ceramic thread guide…)
N.1 set of machine erection tools
Nr.2 hold-in range
Nr.3 copper sheathing
N4. take-up roller

Parts list (More other spare parts available. Please contact us to get more spare parts details.)

the front reed		Warp row
weft needle		Link chain
crochet needle		Weft needle
needle		Eyelet
heald		Hook piece
Drop wires		Latch stop
selvedge plate		Hook needle
Aluminum hand		Reed lever
shedding lever		Bearing
heald frame-middle		Weft spring assem
heald frames assem		Weft tension spring
