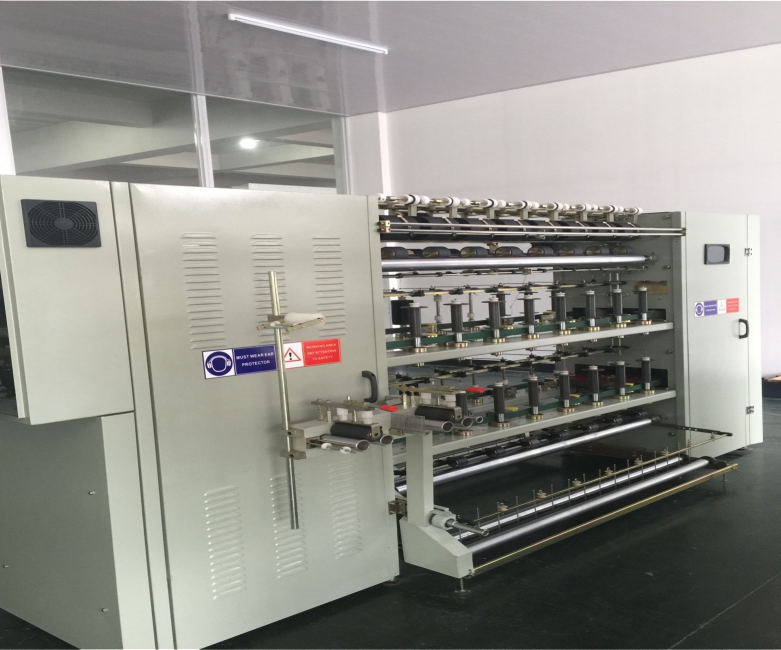

Yarn Double Covering Machine
Details as below:
Production heads: 80 in double covering.
No. of spindles: 32 spimdles/sect*8 sect.
Spindles gauge: 200mm.
Mechanical spindle speed: 15000-17000 RPM
Twist per meter TPM: from 200 to 3500
Aluminum bobbin (mm):
5”1/2*68 flange bore 30mm
5”1/2*76 flange bore 30mm
5”1/2*84 flange bore 30mm
Covered yarn dlogation rate: from 1.5 to 6.0
Installed power (KW): 5.5+7.5 or 5.5+ 11
Twist direction: S or Z
Forming mode: Mechanical / electronic
Traverse length: 160mm
Spindle belt length: 20200mm
Spandex feeder: choose accordng to required.
Extra spare parts (Free)
N.5 spindles complete with fix ceramic inlet.
N.4 spindle hand pliers
N.4 breaking shoes for hand plier
N1. sets of Cleaner and oil pump
All kinds of ceramic,each 12(such as ceramic thread guide…)
N.1 set of machine erection tools
Nr.2 hold-in range
Nr.3 copper sheathing
N4. take-up roller
Parts list (More other spare parts available. Please contact us to get more spare parts details.)
| the front reed |  |
Warp row |  |
| weft needle |  |
Link chain |  |
| crochet needle |  |
Weft needle |
 |
| needle |  |
Eyelet |  |
| heald |  |
Hook piece |
 |
| Drop wires |  |
Latch stop |
 |
| selvedge plate |  |
Hook needle |
 |
| Aluminum hand |  |
Reed lever |
 |
| shedding lever |  |
Bearing |  |
| heald frame-middle |  |
Weft spring assem |  |
| heald frames assem |  |
Weft tension spring |  |
