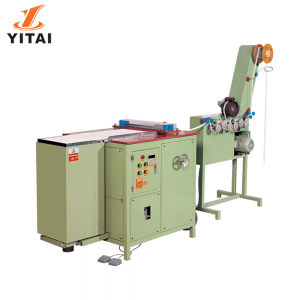

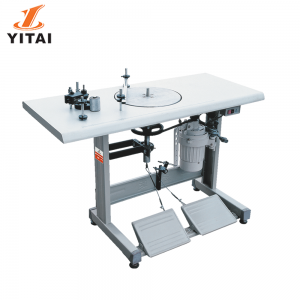

Rolling machine
Application：
Semi-Automatic Rolling Machine is one of packing machines to wind elastic or non-elastic fabric tapes/webbings into small rolls.
Spare parts requirements：
Please fill out the form by“ spare parts inquiry”if you have any spare parts requirement, and provide nameplate of the machine. Send drawing according to the spare parts manual, real spare parts need be provided if necessary.
YTC-P Series Specification:
| Model | 102 | |
| Circle size | 400mm | |
| Tape width | 8mm-50mm | |
| Max packing speed | 110m/min | |
| Motor | 1 HP | |
| Normal attachment | Counter | |
| Optional attachment | much longer tapes packed | |
Parts list (More other spare parts available. Please contact us to get more spare parts details.)

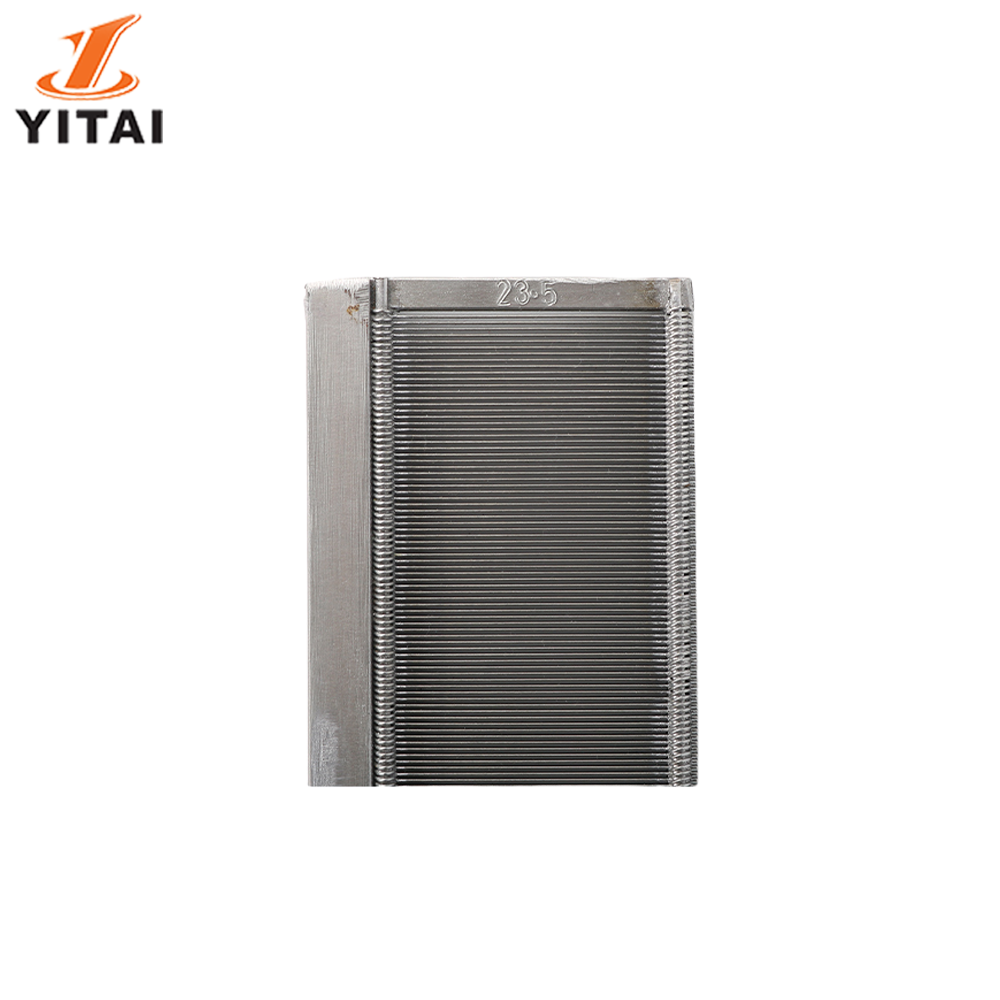

| the front reed |  |

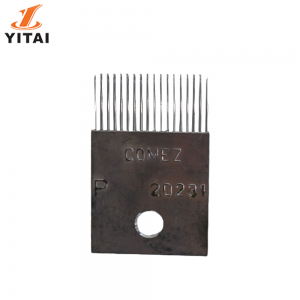

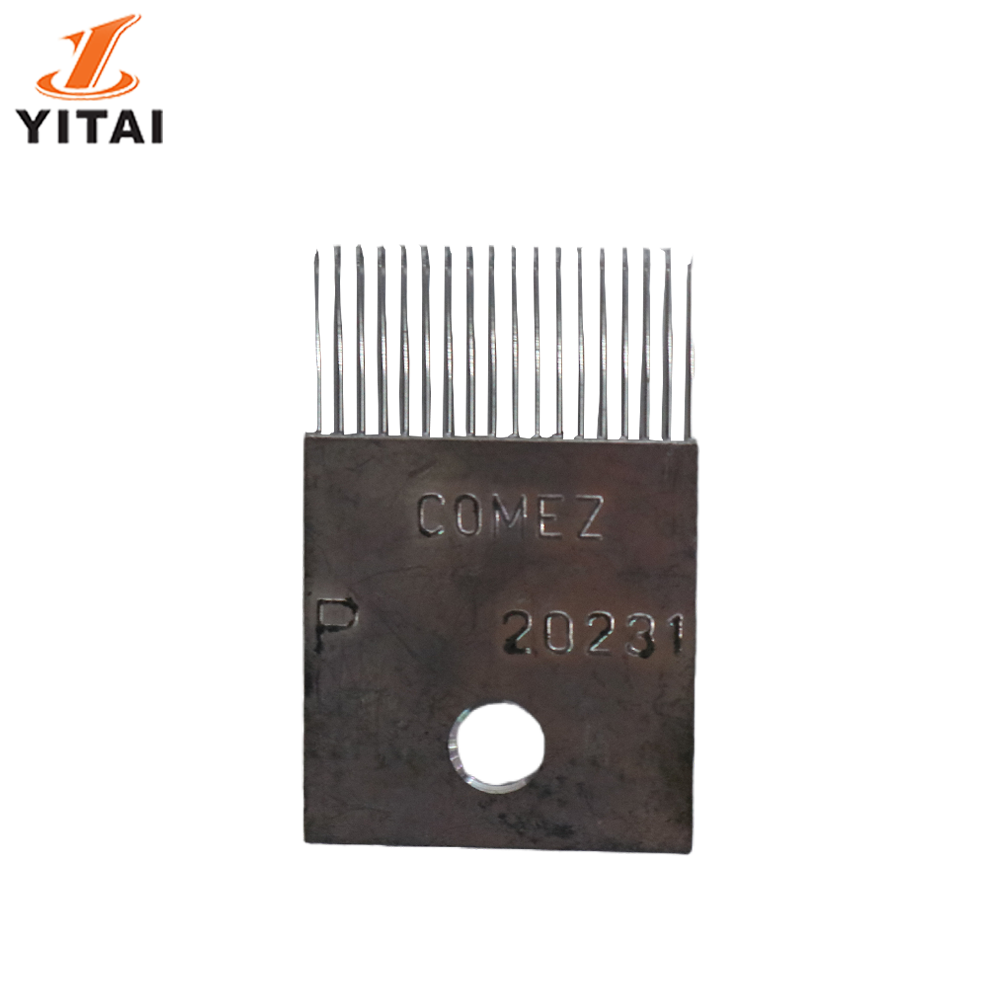

Warp row |  |

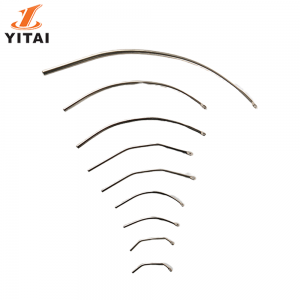

| weft needle |  |

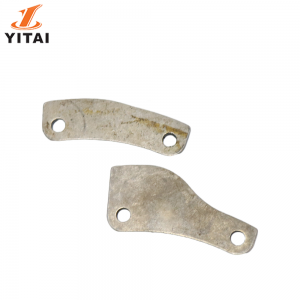

Link chain |  |

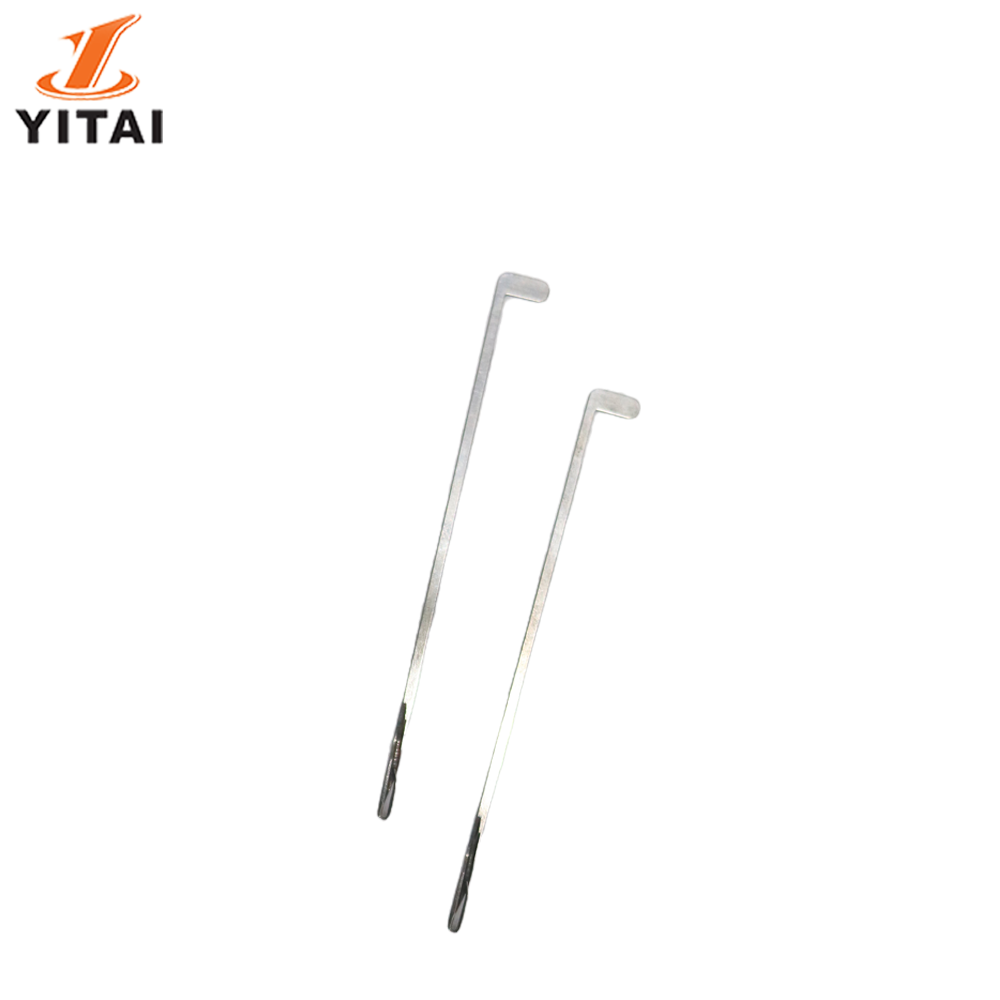

| crochet needle |  |

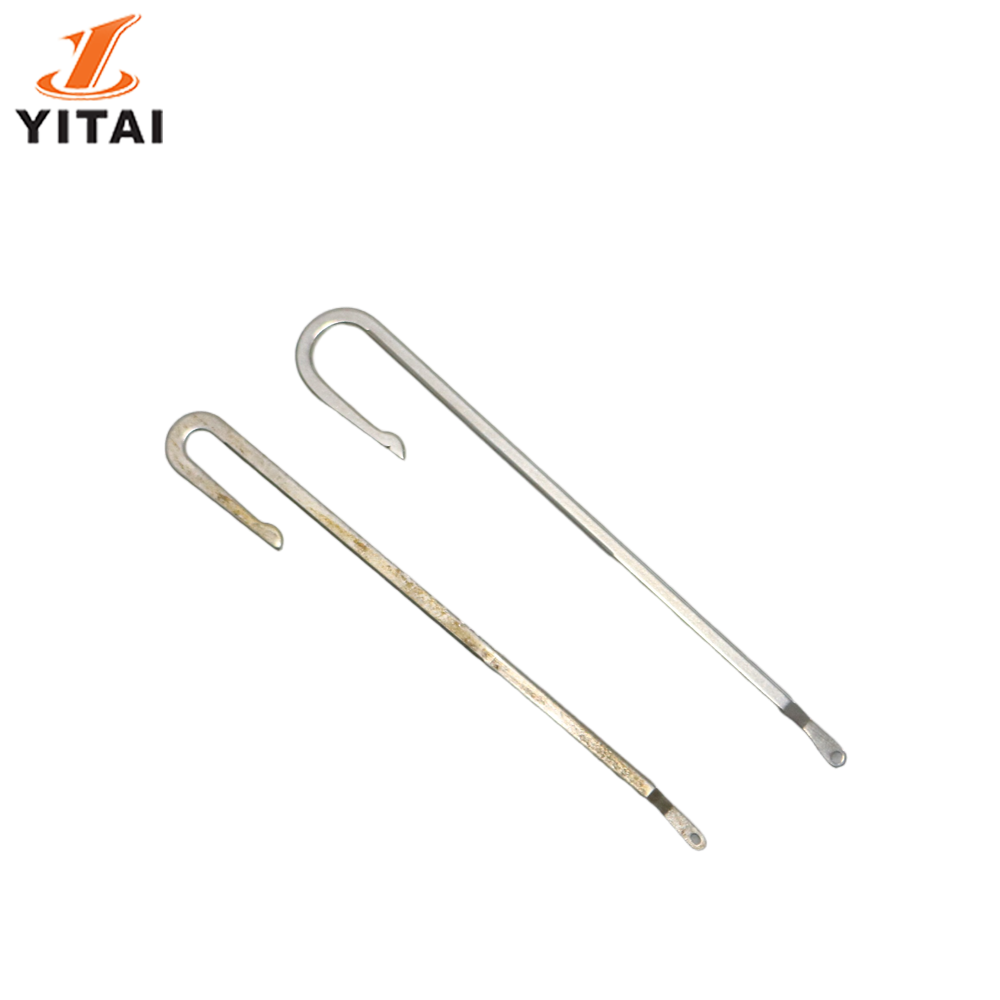

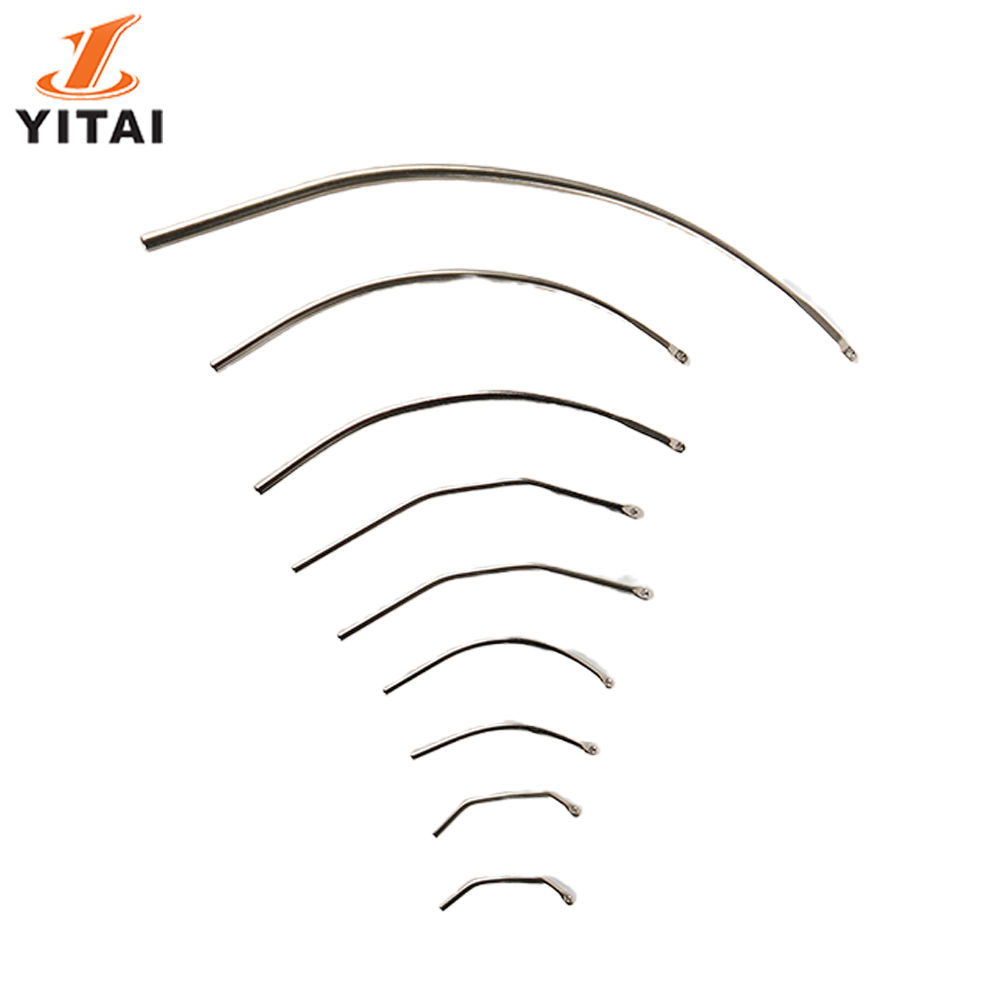

Weft needle |
 |
| needle |  |

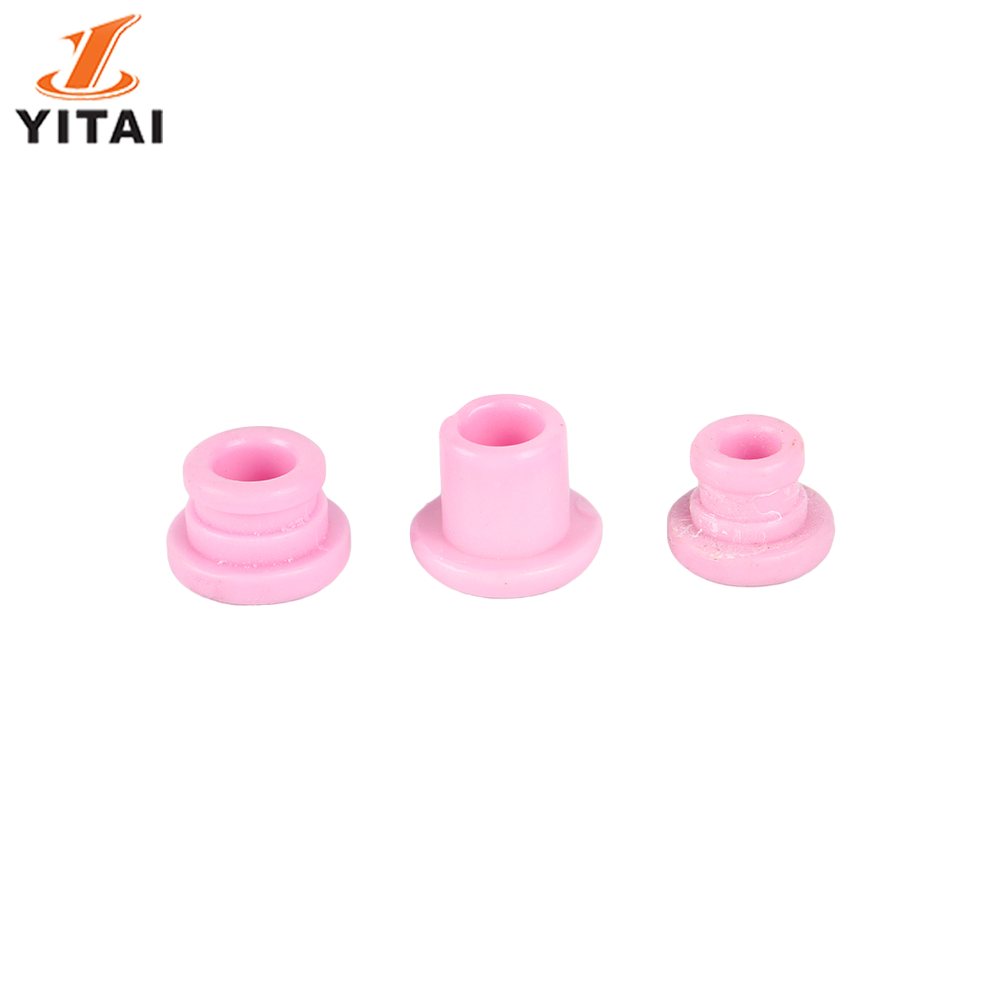

Eyelet |  |

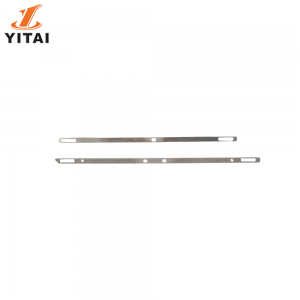

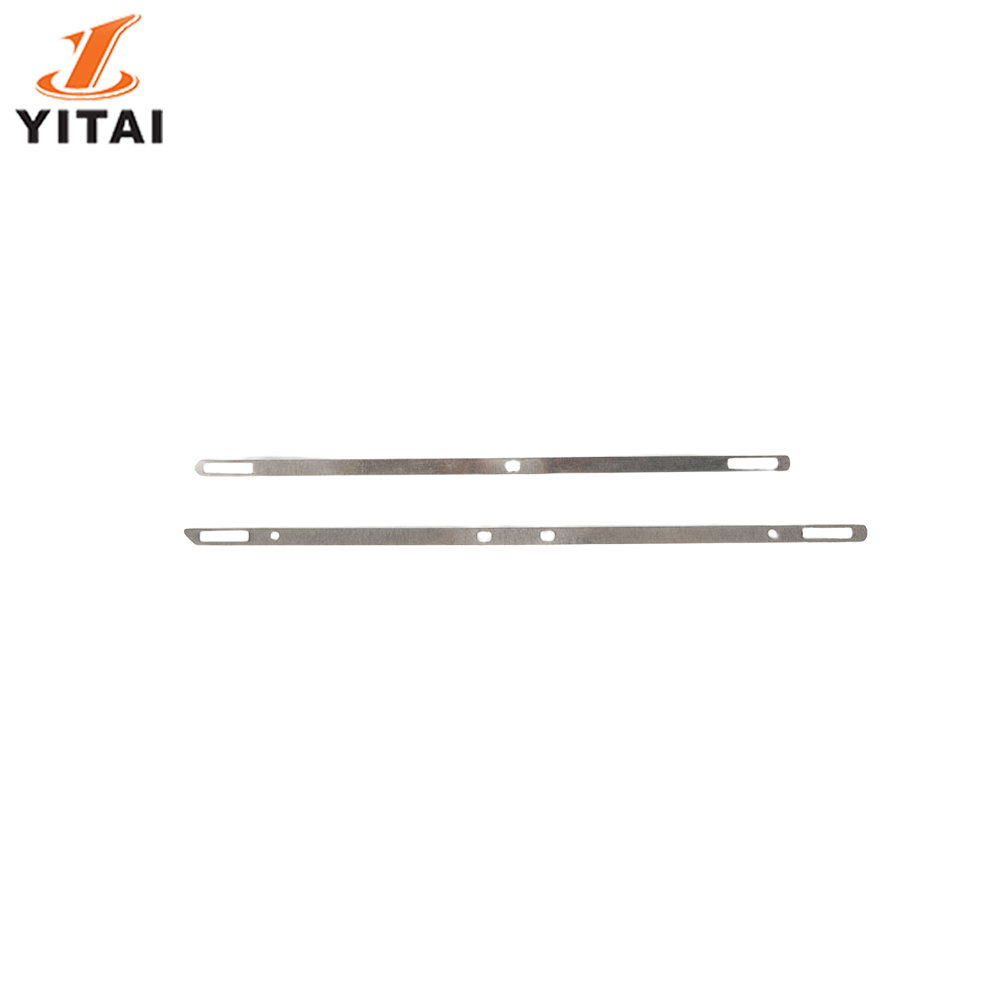

| heald |  |

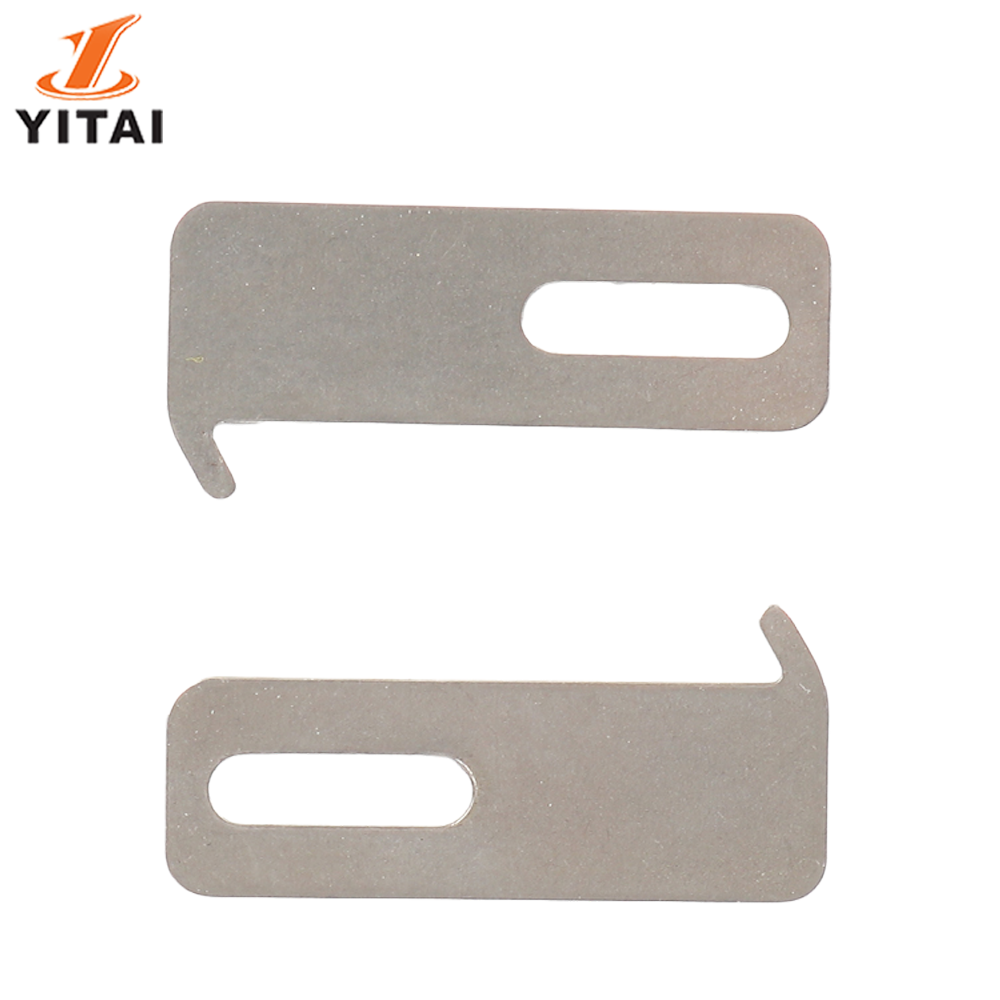

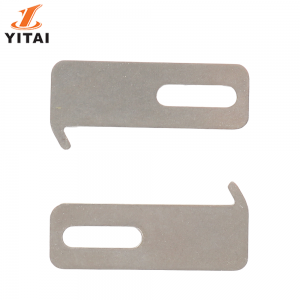

Hook piece |
 |

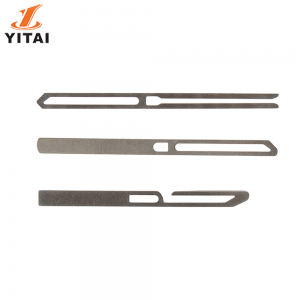

| Drop wires |  |

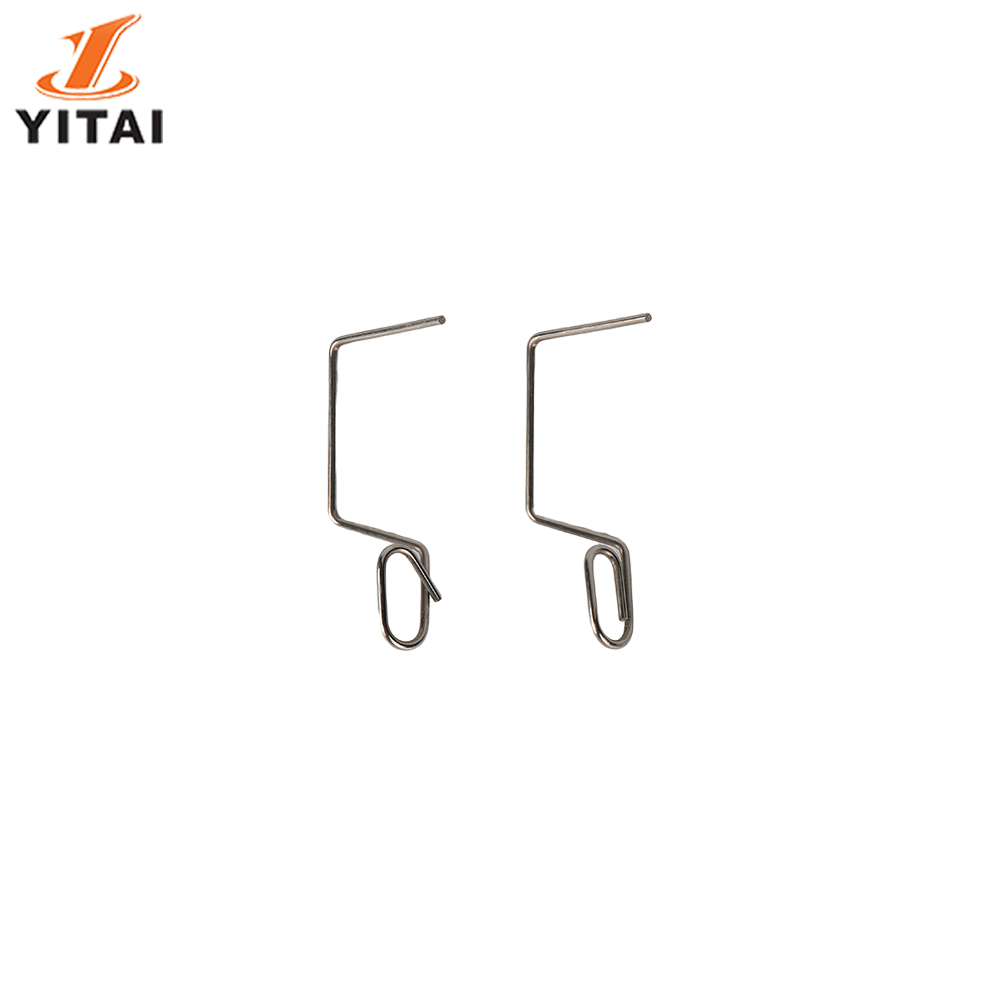

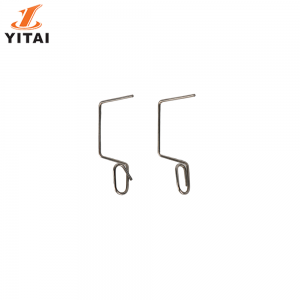

Latch stop |
 |
| selvedge plate |  |

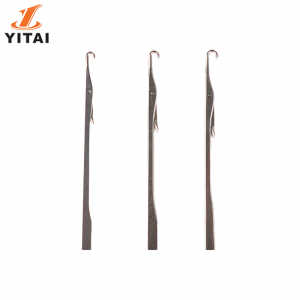

Hook needle |
 |

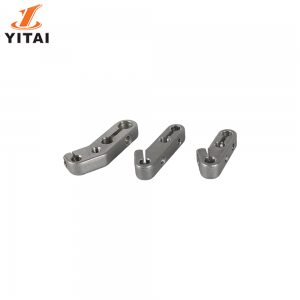

| Aluminum hand |  |
Reed lever |
 |
| shedding lever |  |

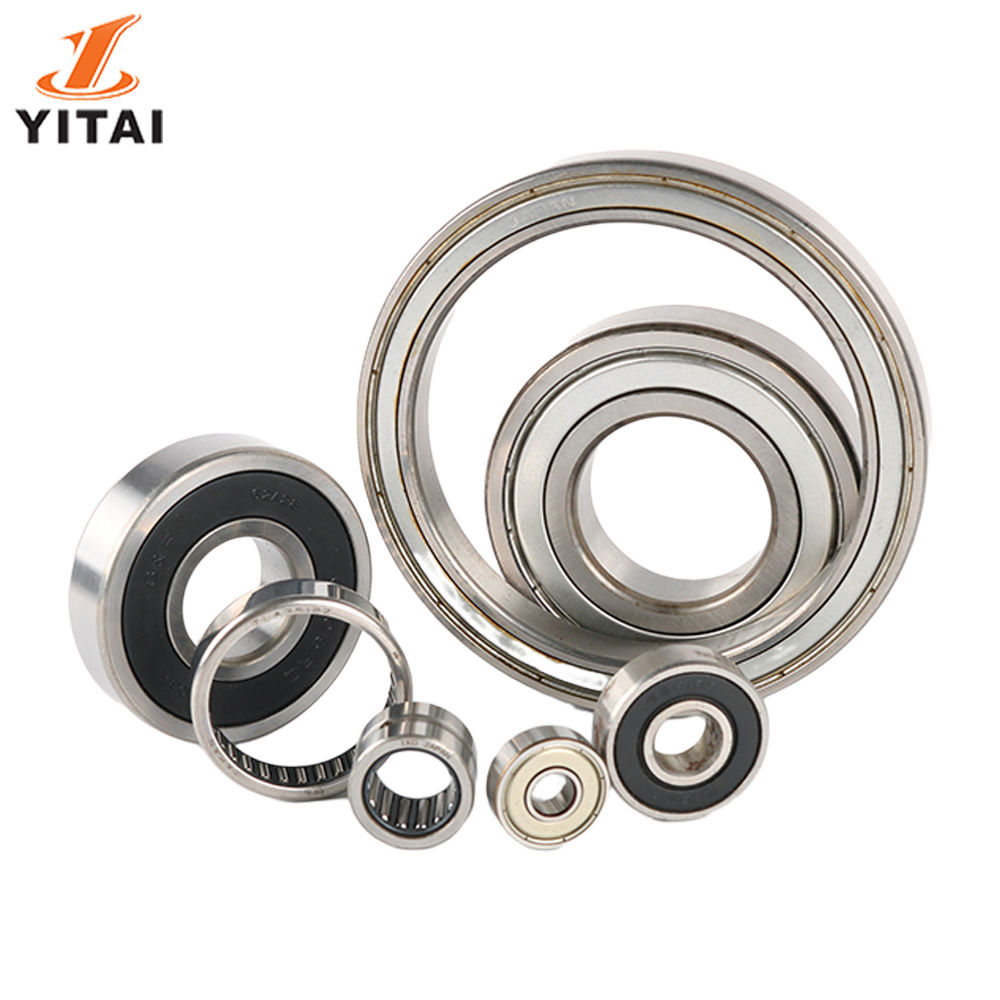

Bearing |  |

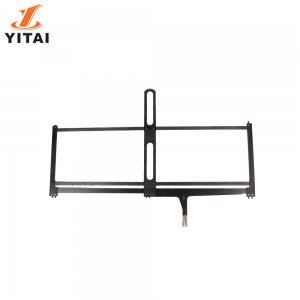

| heald frame-middle |  |
Weft spring assem |  |

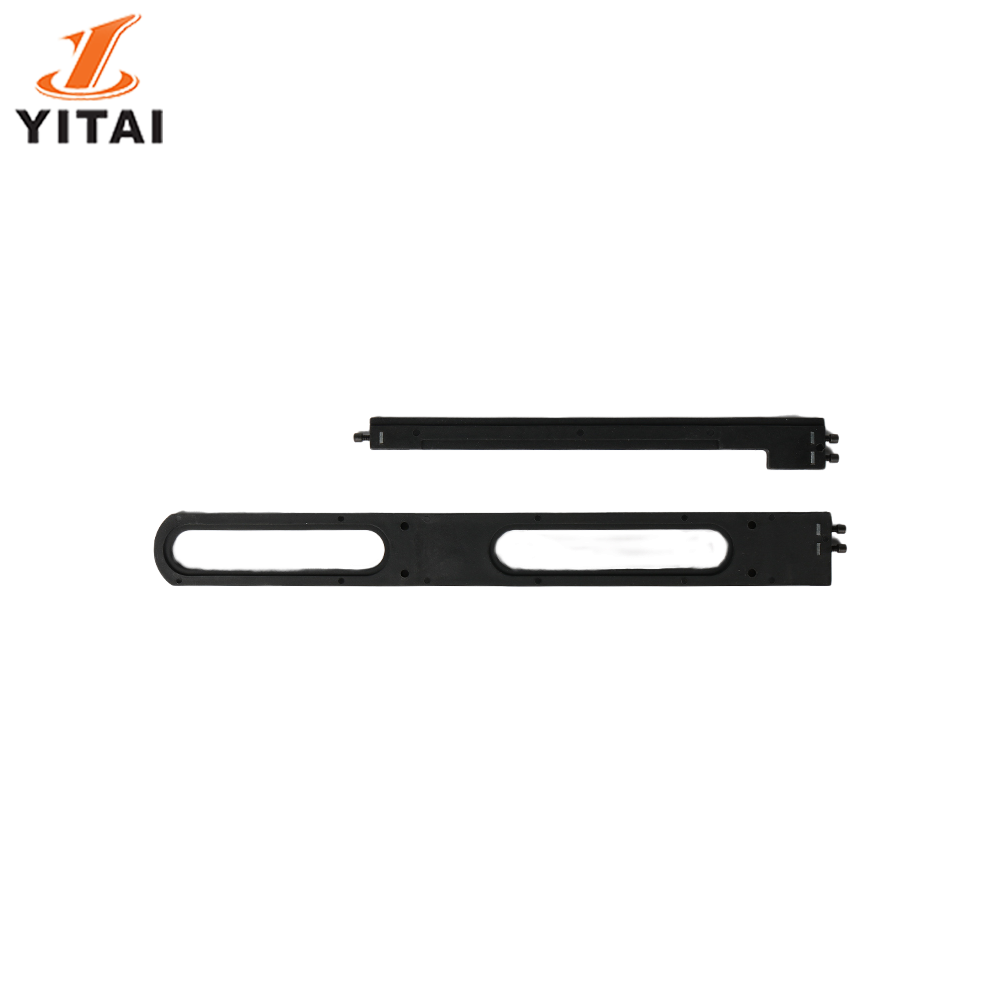

| heald frames assem |  |

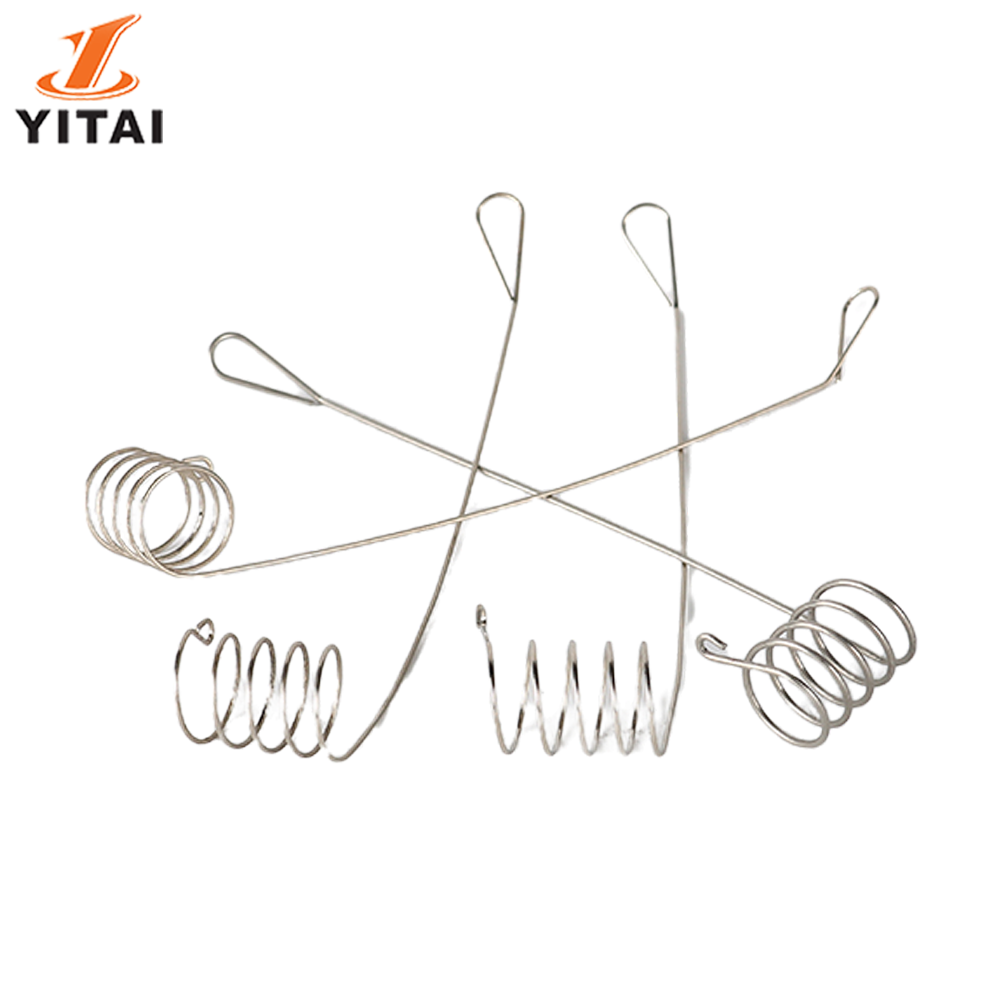

Weft tension spring |  |
